MODEL: AT01120H-08-07
Share
  • Brand
    ECOMAX
  • UPC
    810018927585
  • Noise level dB
    ≤87 dB(A)
About this item
8gal hotdog compressor
Learn more Requirements Consultation
Product Description

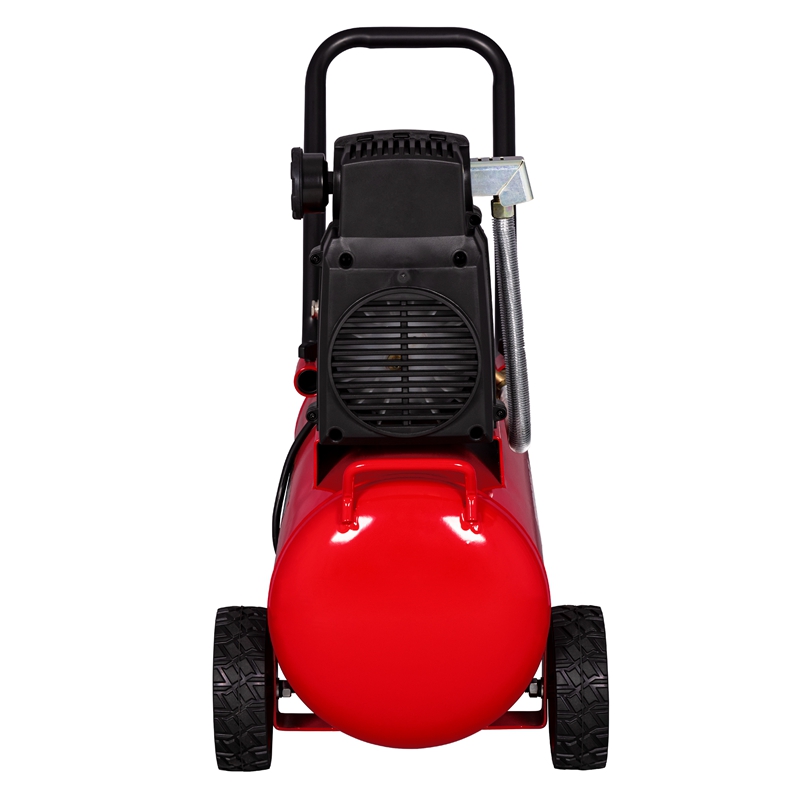

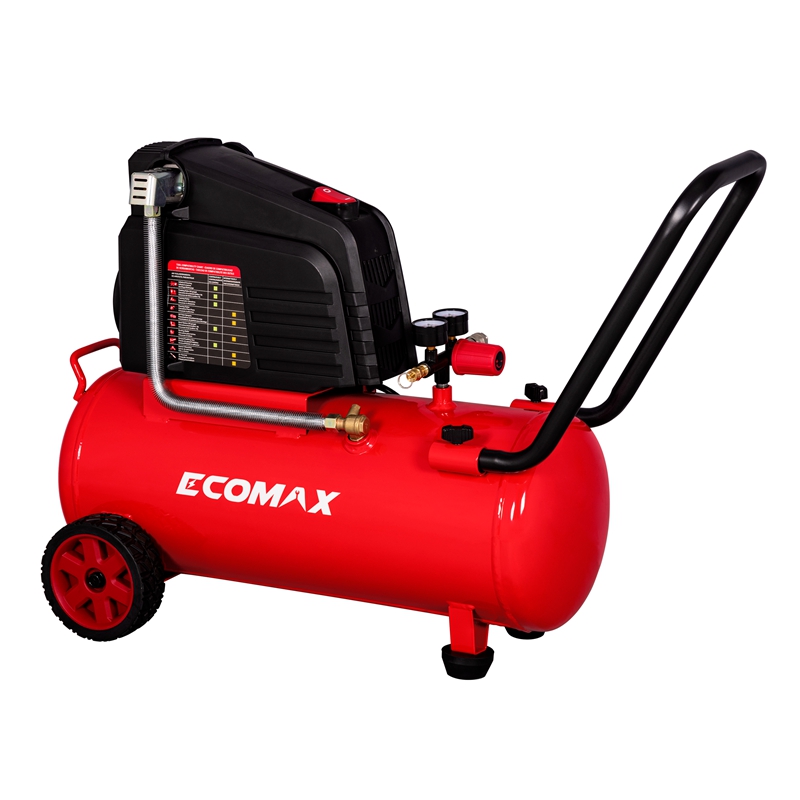

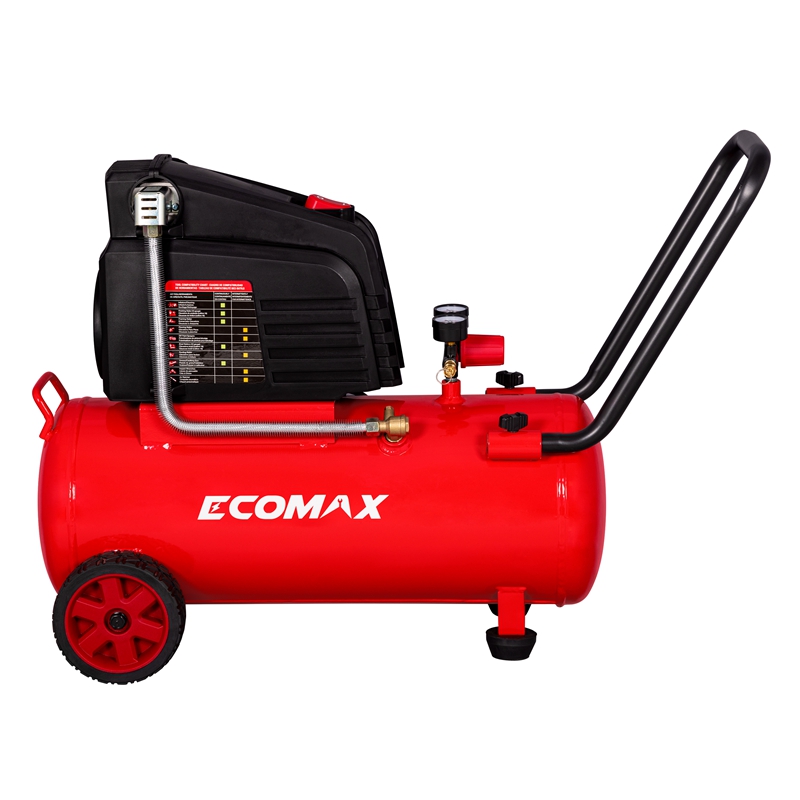

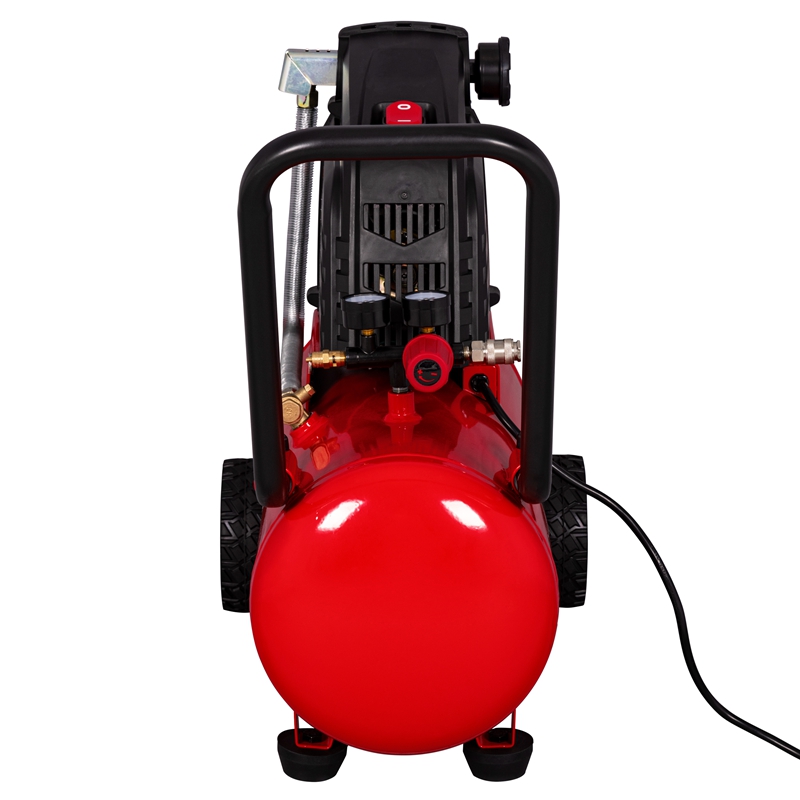

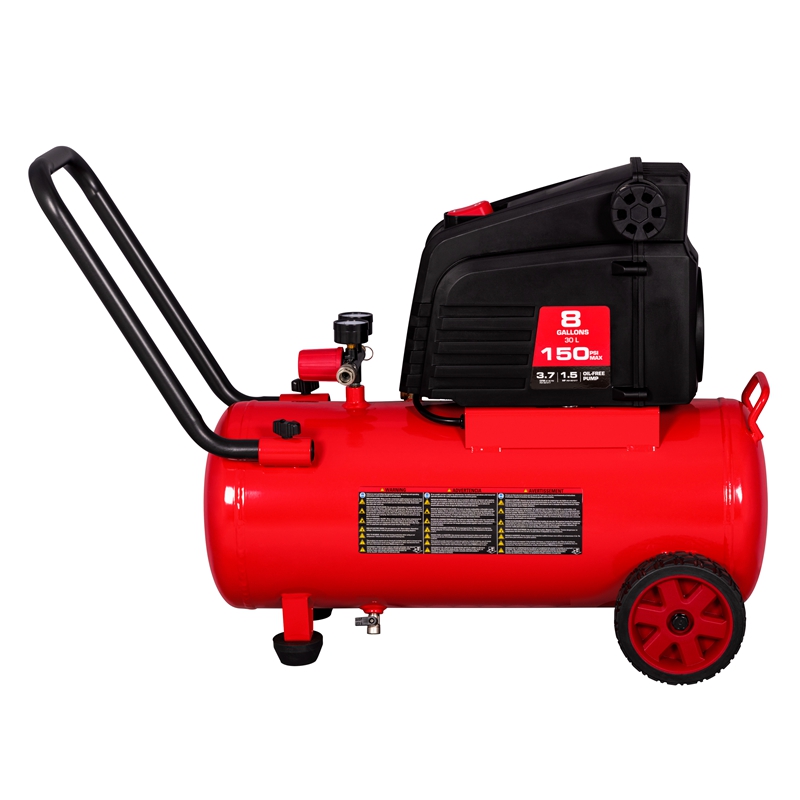

This ECOMAX 8 Gal HOT DOG AIR COMPRESSOR has the power you need on the job site and in the workshop. It is designed to operate at up to 150PSI powered by a 1.5 HP motor and features an oil-free pump that requires less maintenance. It provides durability for longer life, while the pressure gauges and large regulator add convenience. It is equipped with an air filter that increases efficiency. Two rubber wheels and removable handle allow positioning of the air compressor exactly where you need it or easy transportation from one location or workspace to another with convenient storage.


Bullets

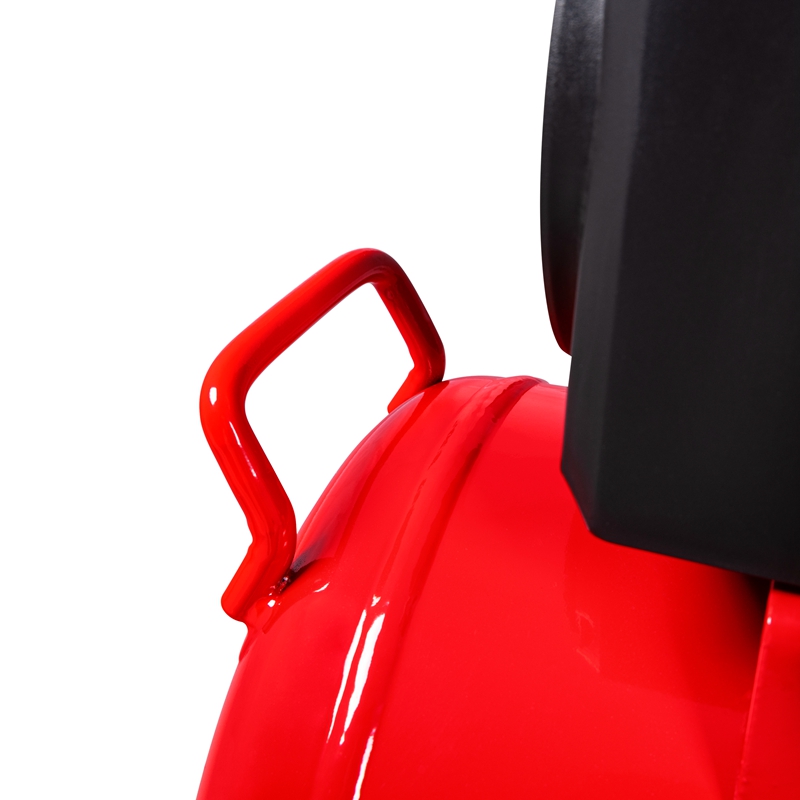

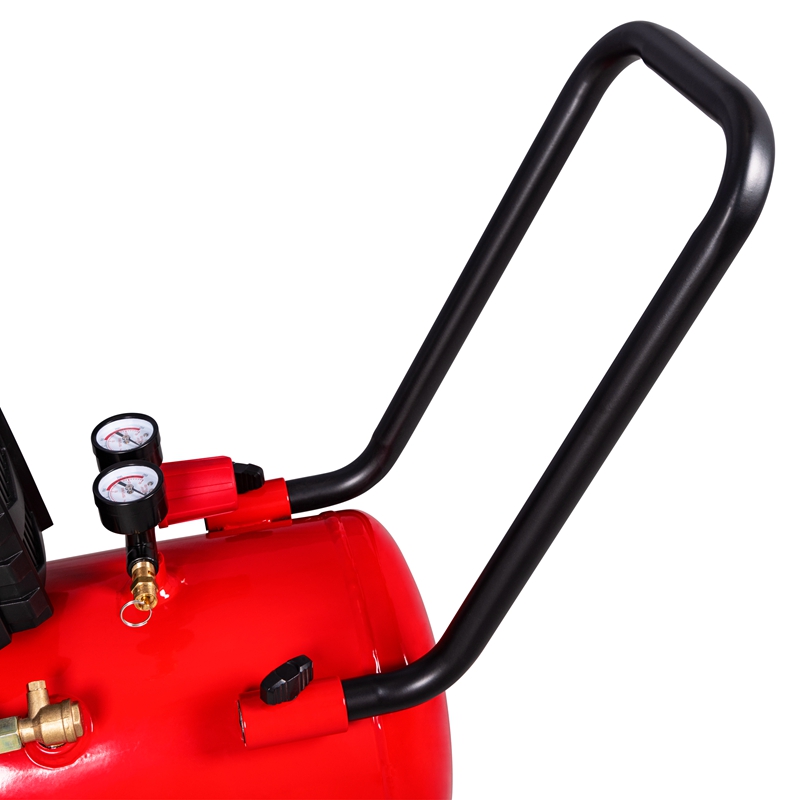

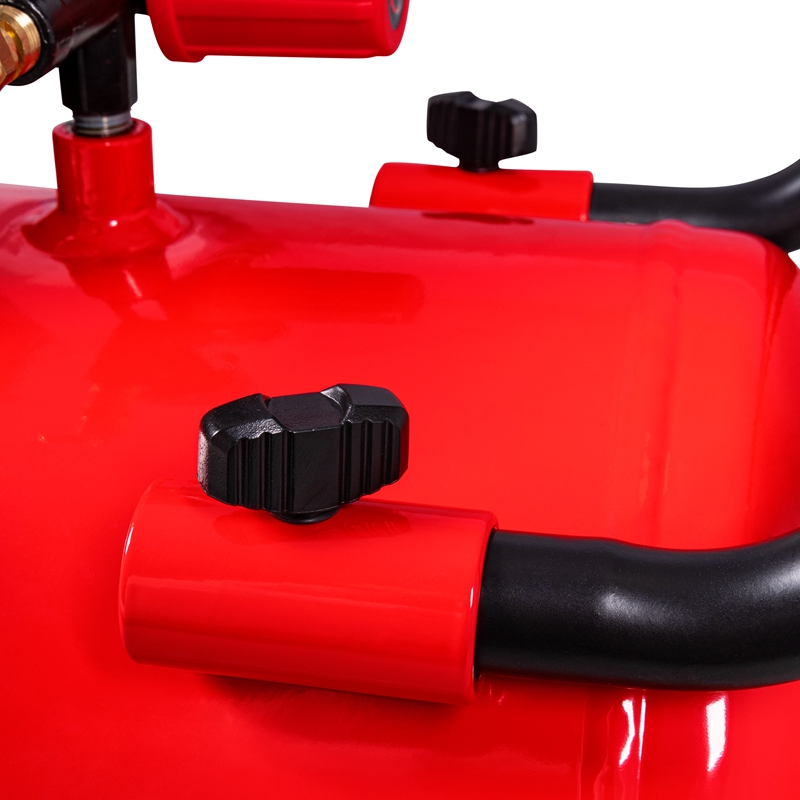

(1) Removable Handle: For Easy Transport

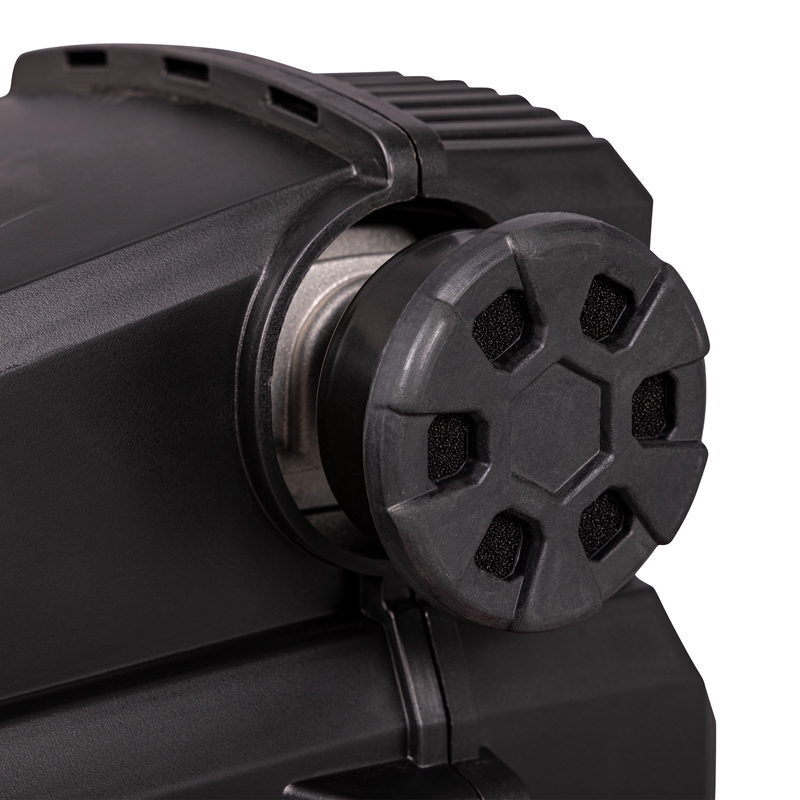

(2) Air Filter
For Durability
(3) Oil-Free Pump
For Less Maintenance

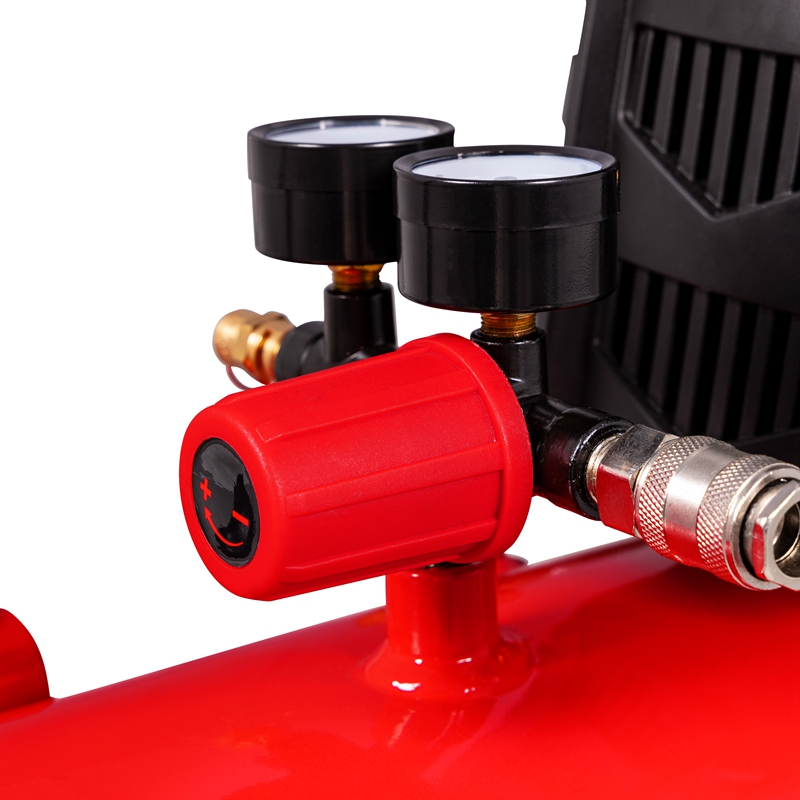

(4)Large Air Pressure Regulator
Convenient Adjustment Of Air Pressure To Suit The Tool Being Used

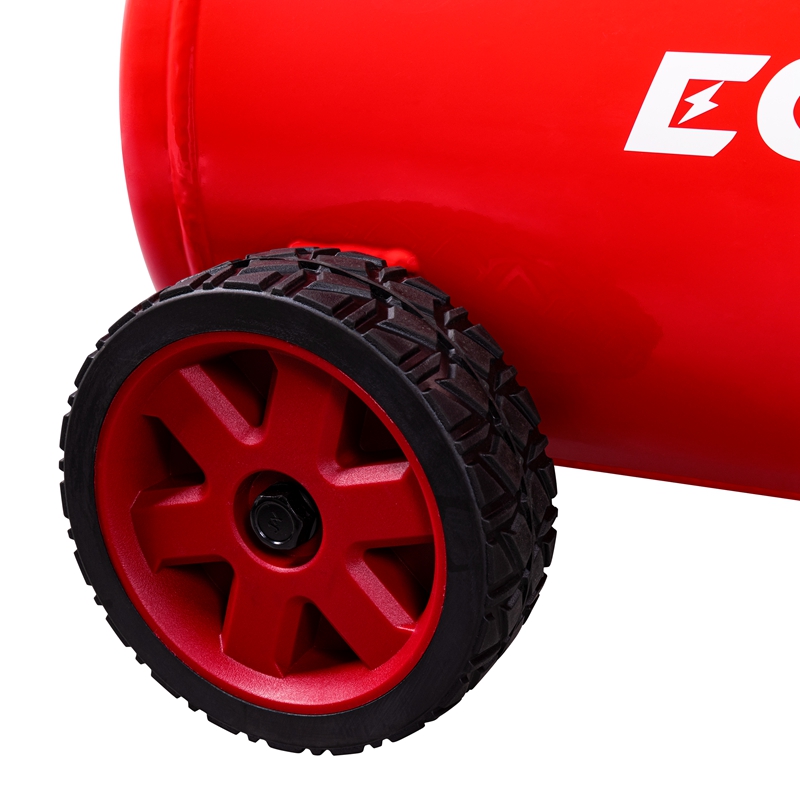

(5) Rubber Wheels
For easy transport

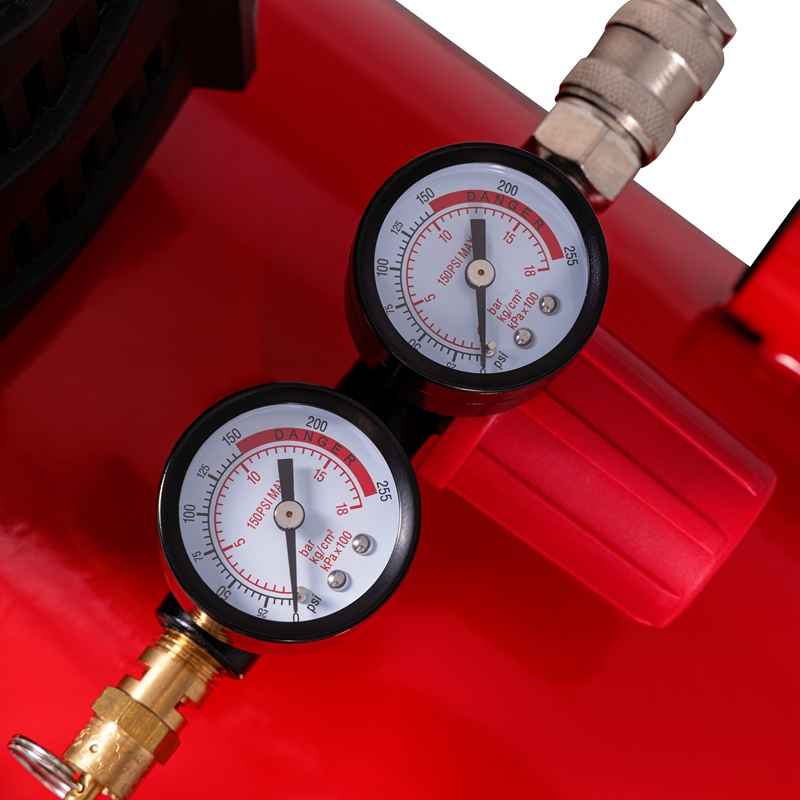

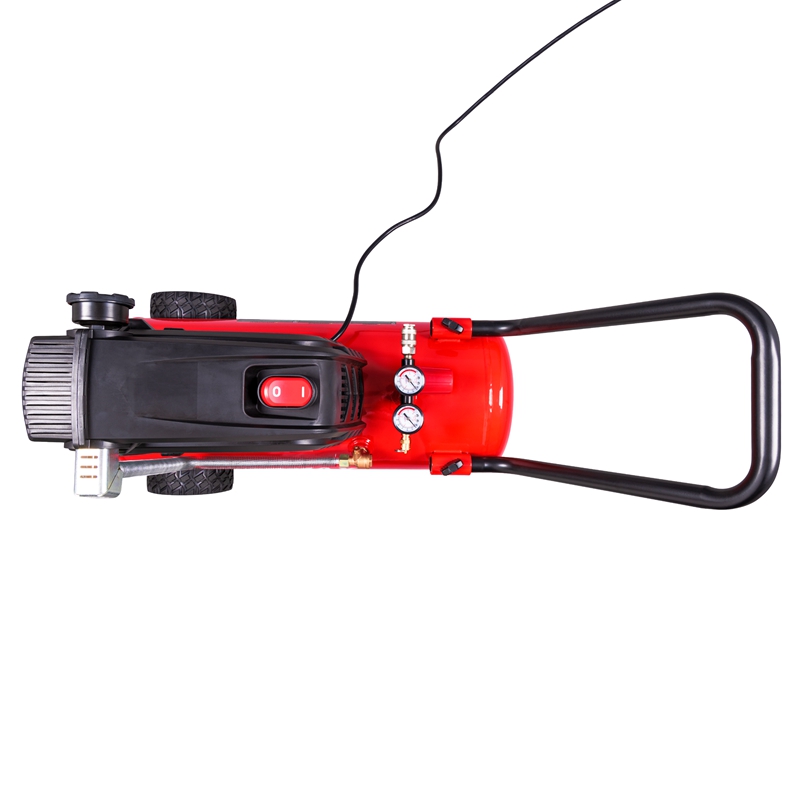

(6)Tank Pressure Gauge: Measures Pressure Level Of Stored Air

(7)Regulated Pressure Gauge: Measures The Regulated Output Pressure

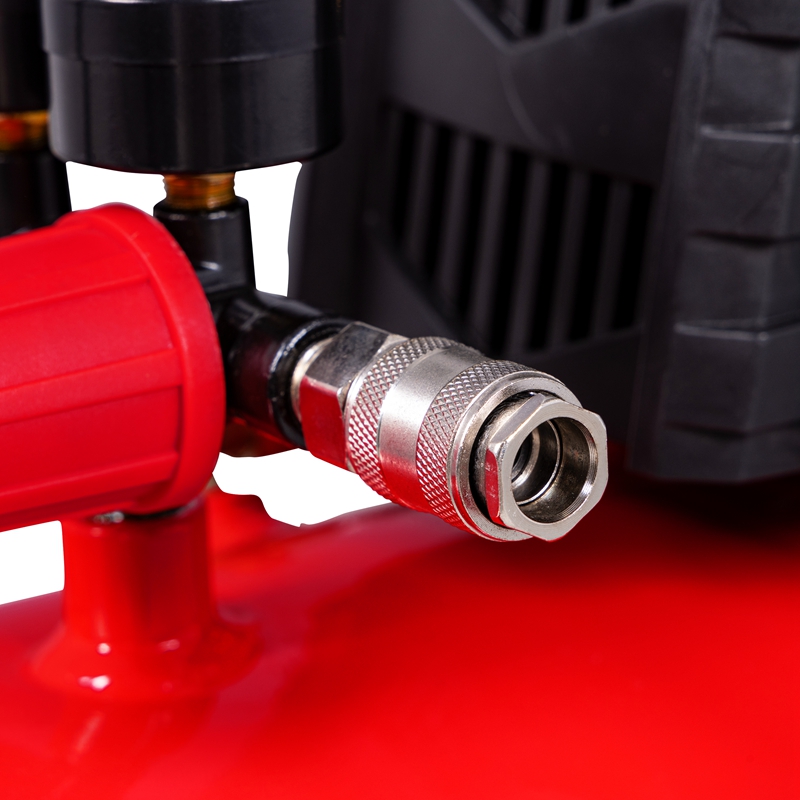

(8) Quick Coupler
For Universal Use

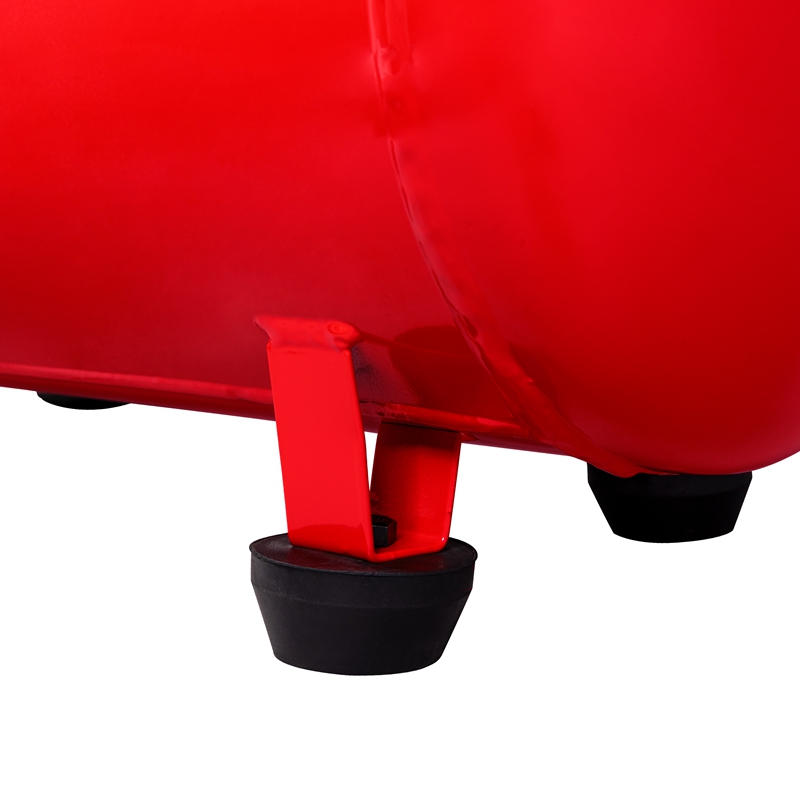

(9)Rubber Feet:
Reduce Vibration And Increase Stability

Specifications
Specs
Tank Size(Gallon) 8 Gal
Tank shape Hotdog
ASME tank (Y/N) N
Running HP 1.5 HP
Working pressure 120-150PSI
CFM@40psi 4.8
CFM@90psi 3.7
Motor type Induction
Oil free/Oil lube Oil-free
Quick coupler(0/1/2) 1
Gauges size / case 1.5"x2

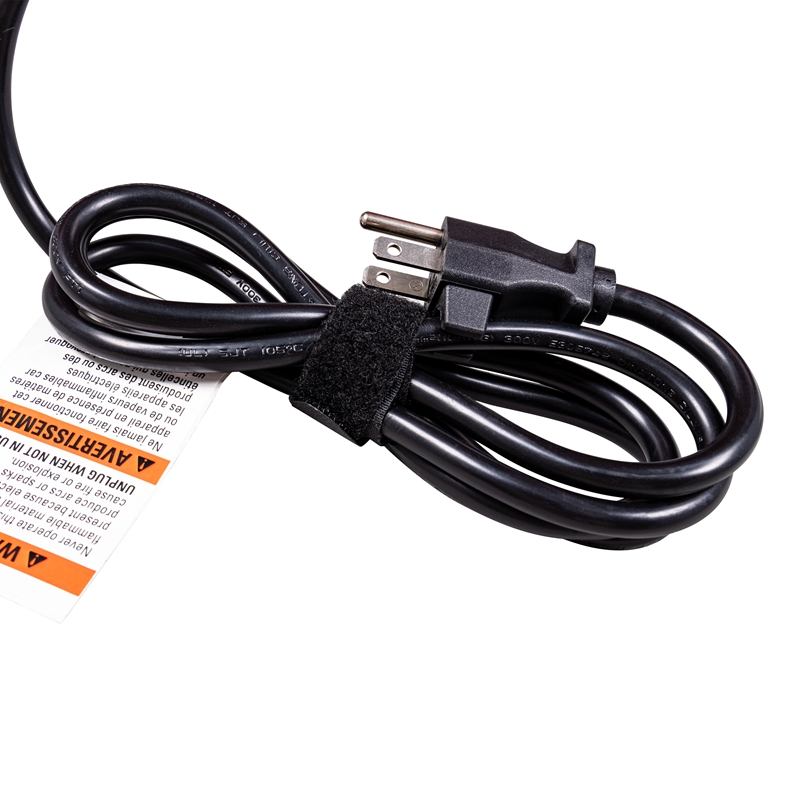

Cord length(ft.) 6'
Rubber Wheels 2× 6''
Handle type Removbale
Air filter YES
Pressure switch YES

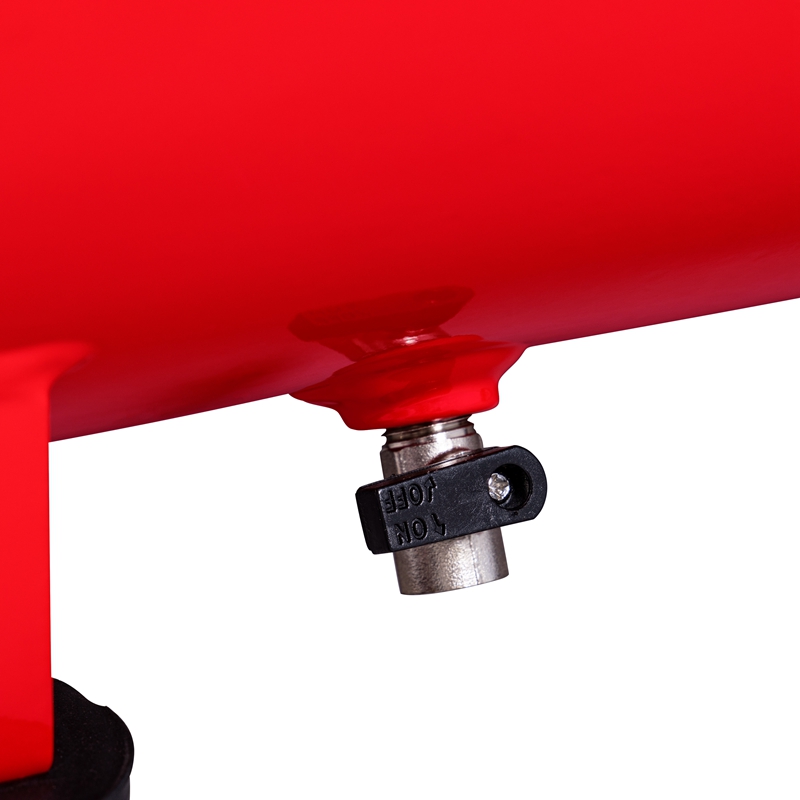

Drain valve 1/4" ball valve
Life cycle(Hrs) 300h
Duty cycle % 50% duty cycle
Noise level dB ≤87 dB(A)
Accessories
Accessories included N
Packaging
Packaging Color Box
Packing size(LxWxH)cm 65.5×28×62.5
Packing size(LxWxH)inch 25.8x11x24.6
Load Qty/40GP(pcs) 489
Load Qty/40HQ(pcs) 576
Net weight (kg) 23kg
Net weight (lbs) 50.71 lb
Gross weight (kg) 27kg
Gross weight (lbs) 59.52 lb
