MODEL: AT01111P-06-04
Share
  • Brand
    WC (Shipped)
  • UPC
    810941033186
  • Noise level dB
    ≤82 dB(A)
About this item
6gal pancake compressor
Learn more Requirements Consultation
Product Description

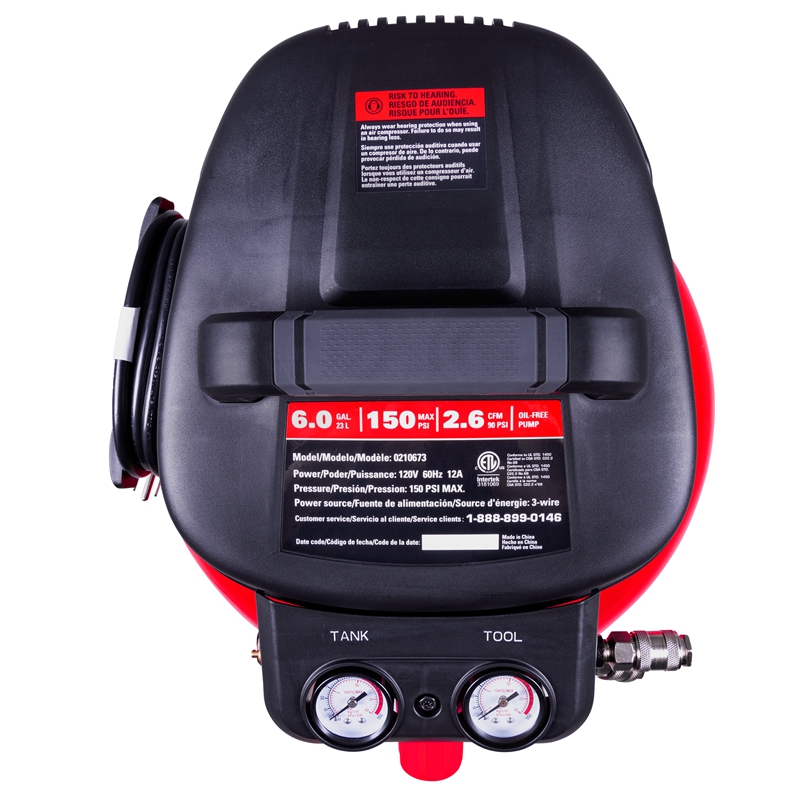

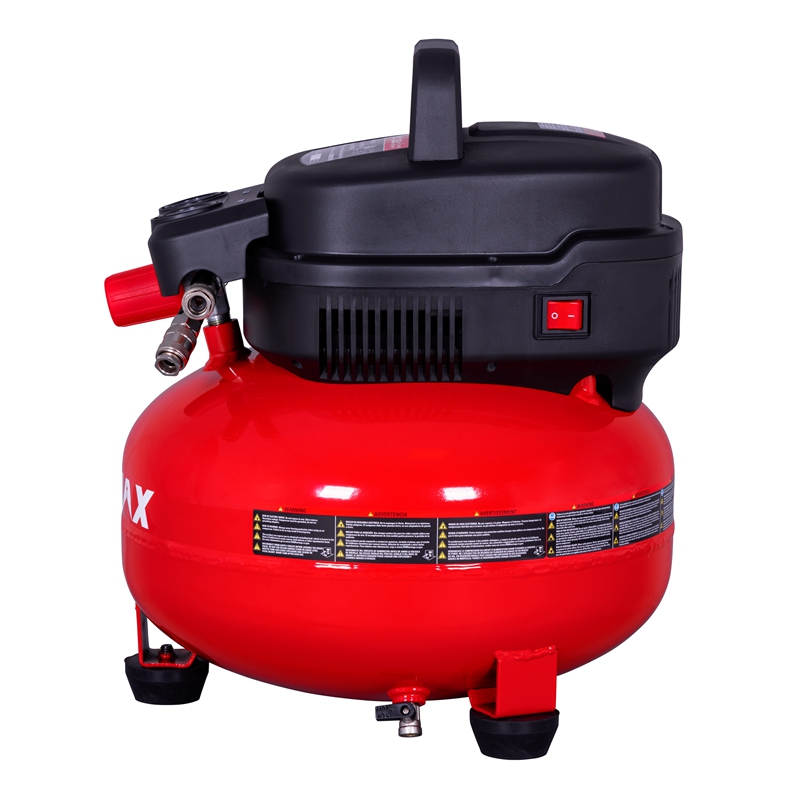

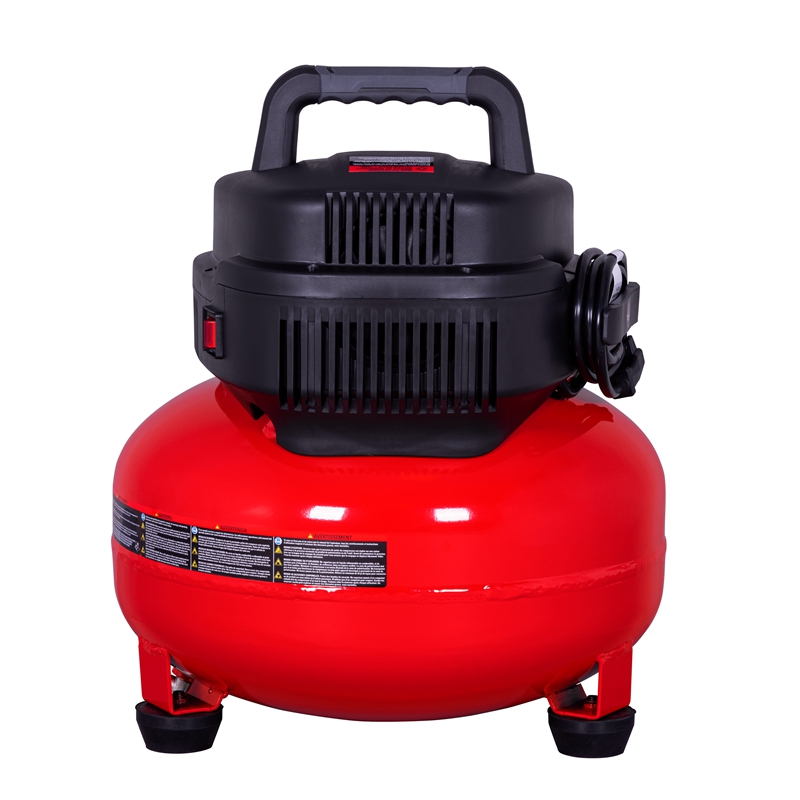

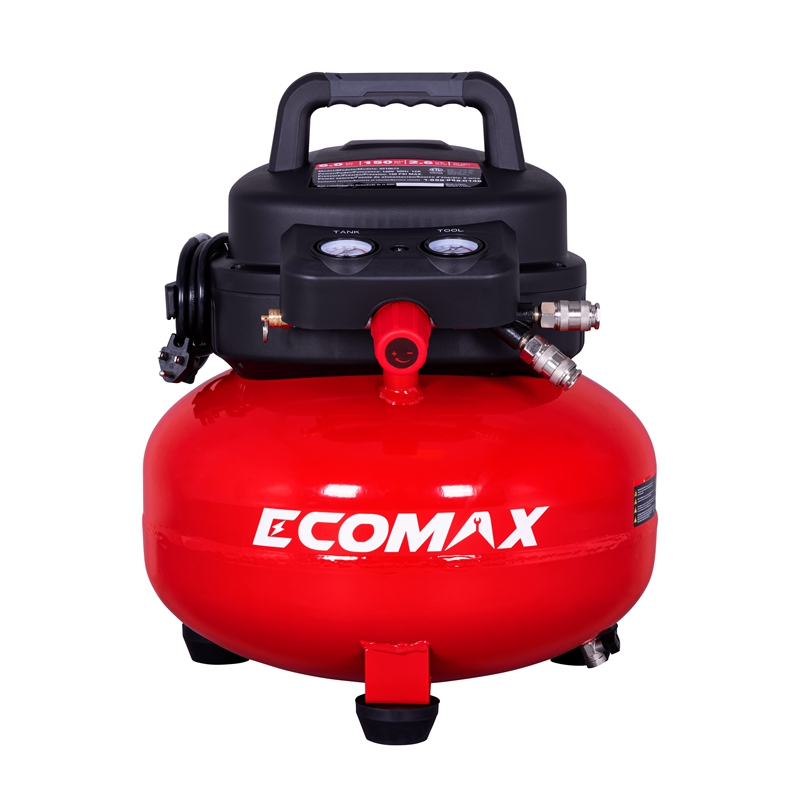

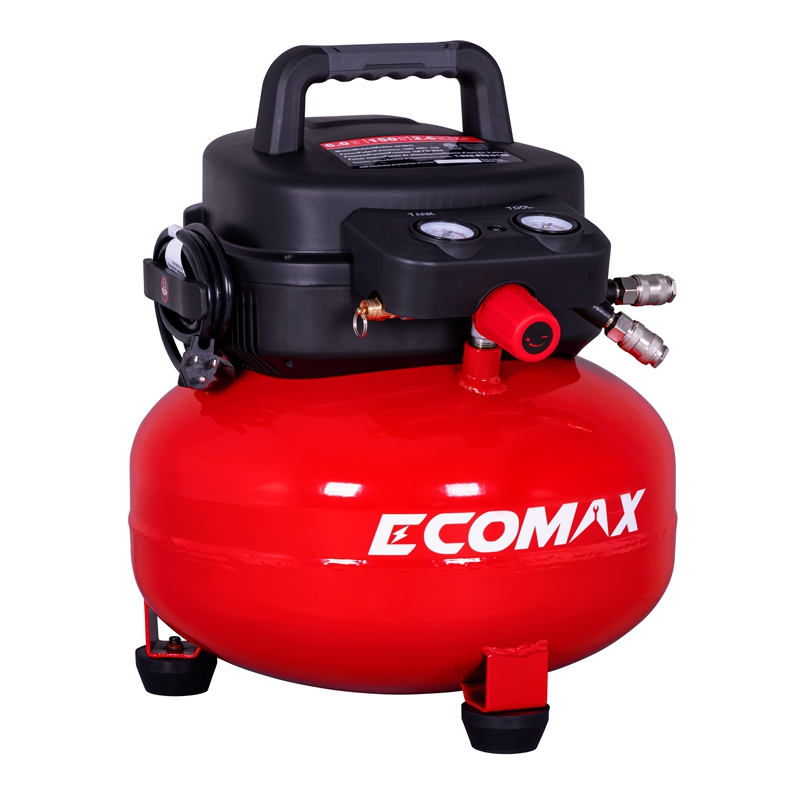

This ECOMAX 6 Gal 1.0 HP PANCAKE AIR COMPRESSOR has the power you need in the house and on the job site. It is designed to operate at up to 150 PSI and features dual gauges for precise pressure, winding bracket for convenient power cord storage, dual quick couplers for simultaneous use, a durable oil-free pump for less maintenance. Lightweight and highly efficient, this versatile multi-purpose air compressor is the same power as the larger compressors, only smaller air capacity which makes it more mobile.It features low-voltage and cold-weather start. It can tackle most any job you need it to do.


Bullets

(1) Integrated Carry Handle:
Allows For Easy Jobsite Portability
(2)Oil-Free Pump:
For Less Maintenance
(3) Low-Voltage Start
(4) Cold-Weather Start

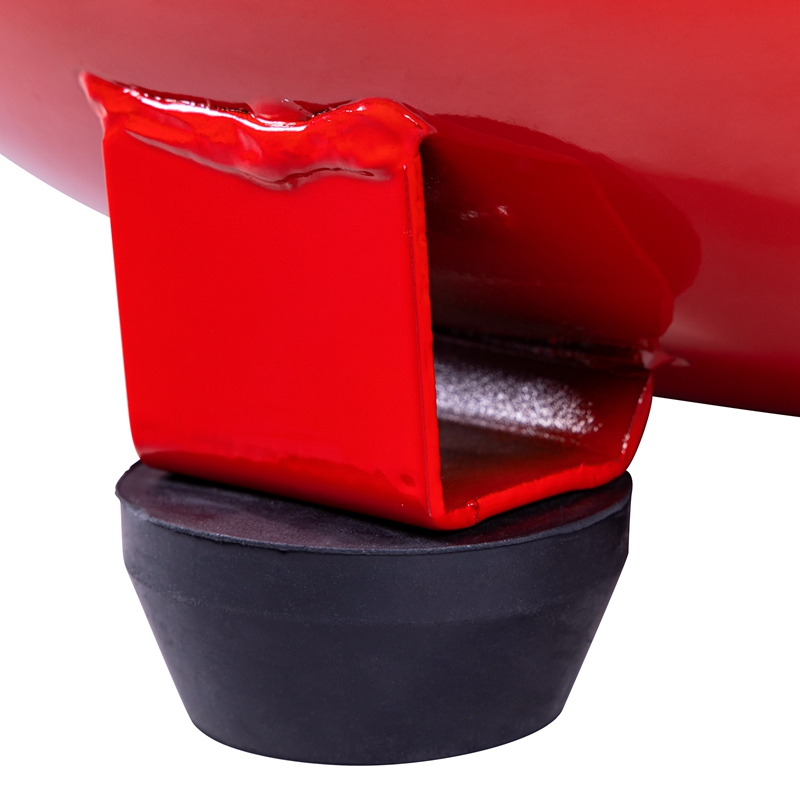

(5)Rubber Feet:
Reduce Vibration And Increase Stability

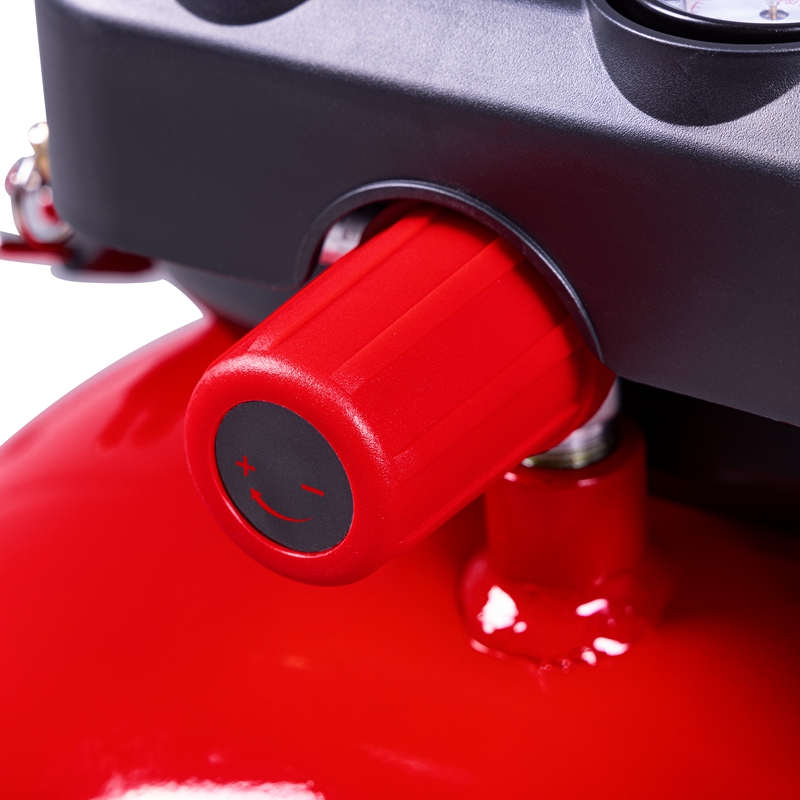

(6)Large Air Pressure Regulator:
Convenient Adjustment Of Air Pressure To Suit The Tool Being Used

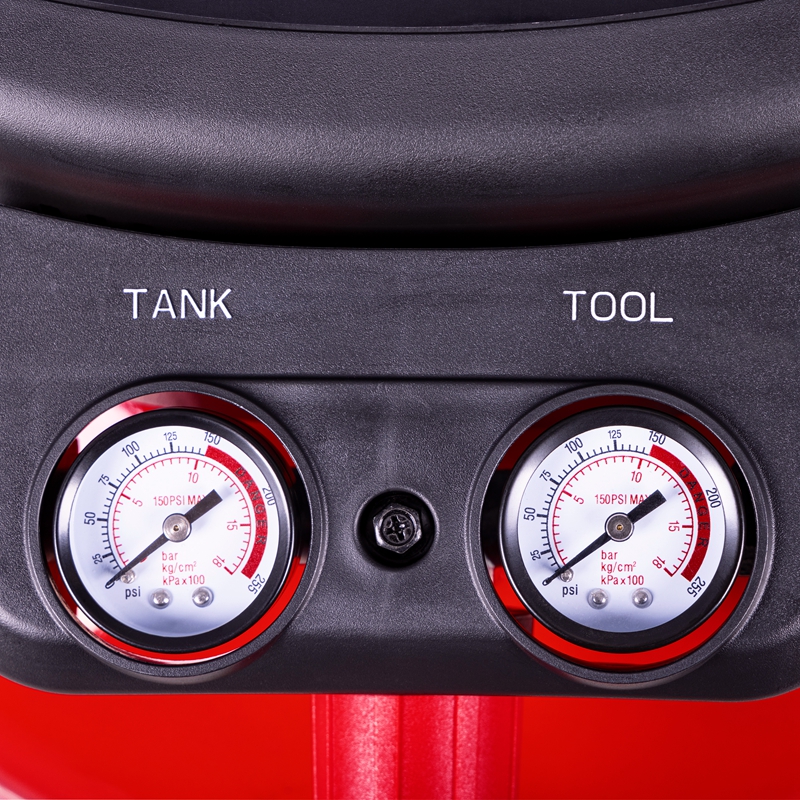

(7)Tank Pressure Gauge: Measures Pressure Level Of Stored Air
(8)Regulated Pressure Gauge: Measures The Regulated Output Pressure

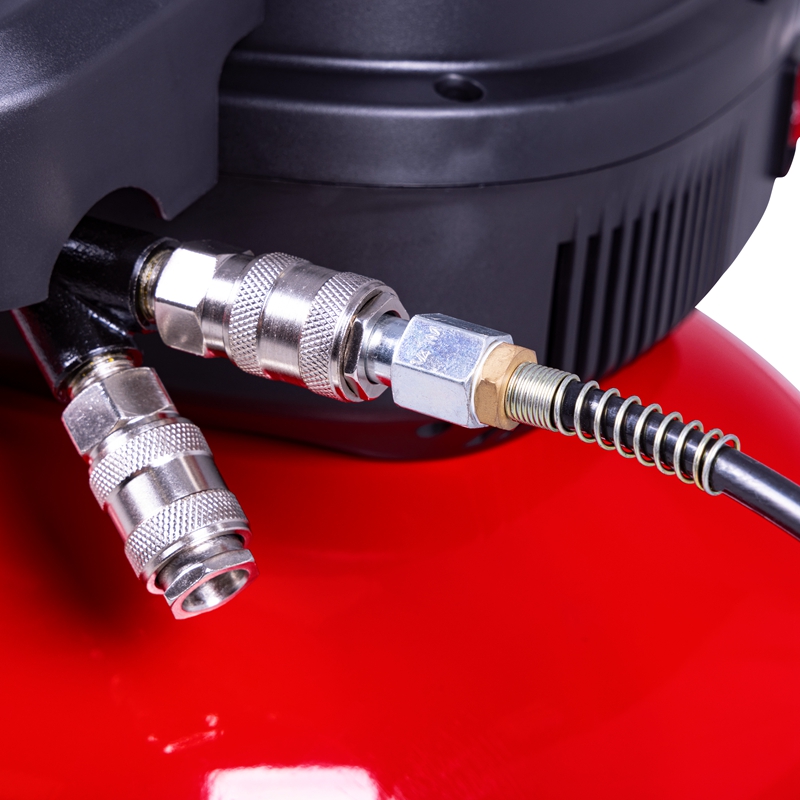

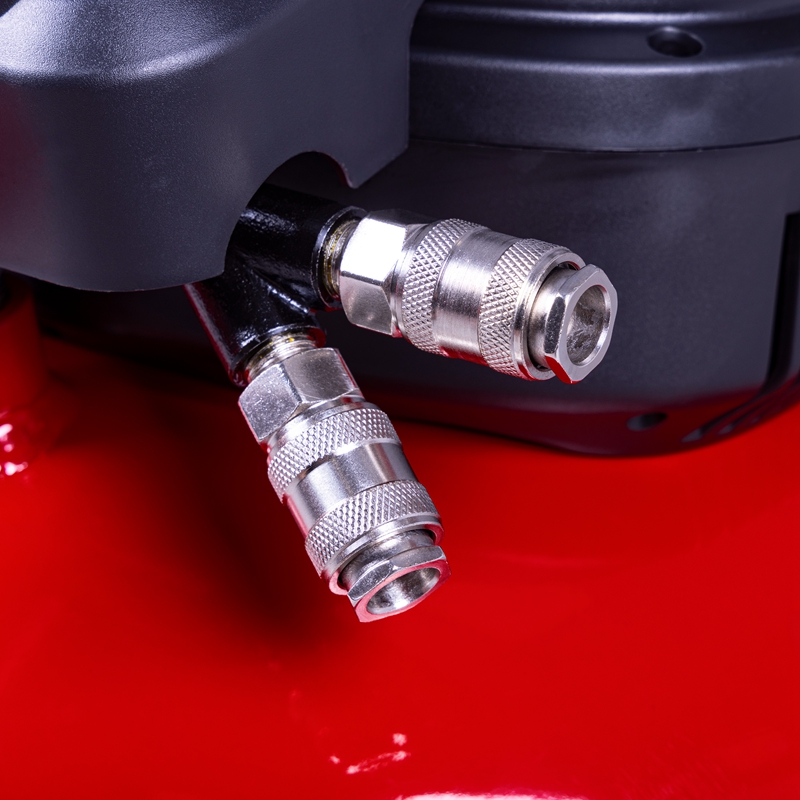

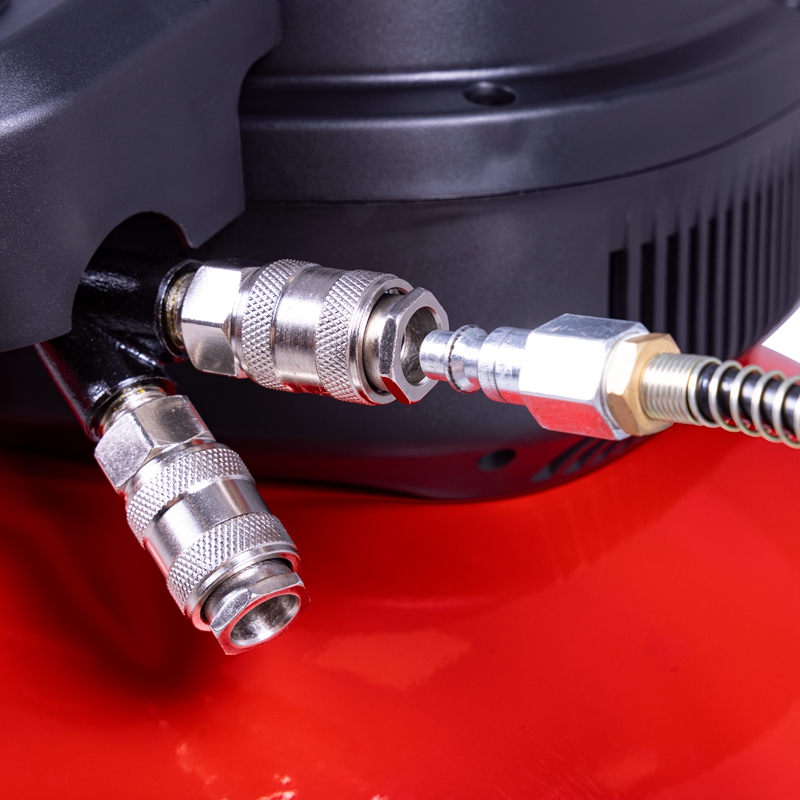

(9) Dual Quick Couplers: For universal use

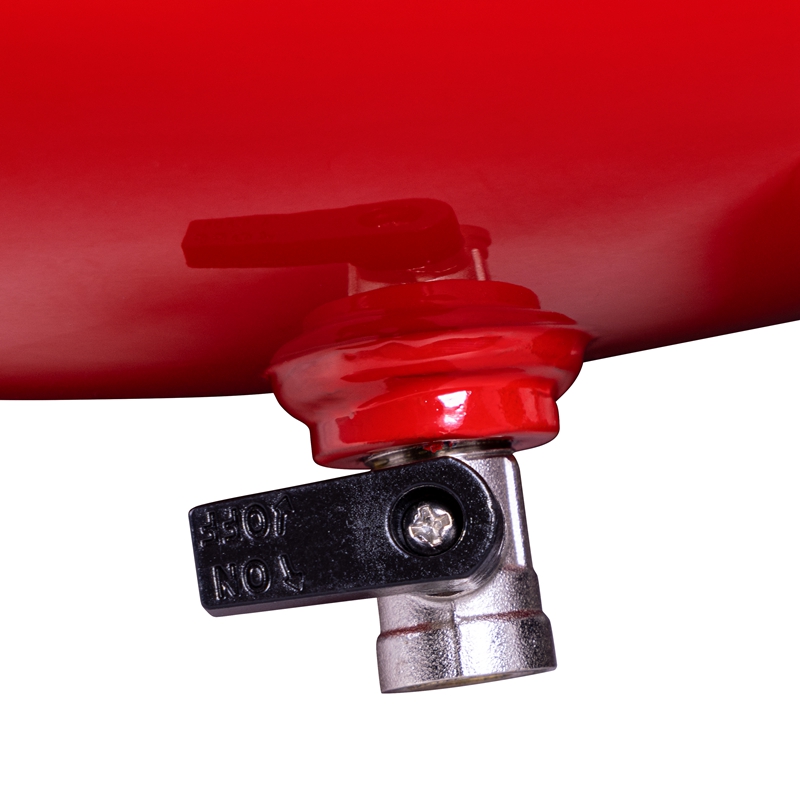

(10) Air Tank Drain Valve: For Removing Moisture From The Air Tank

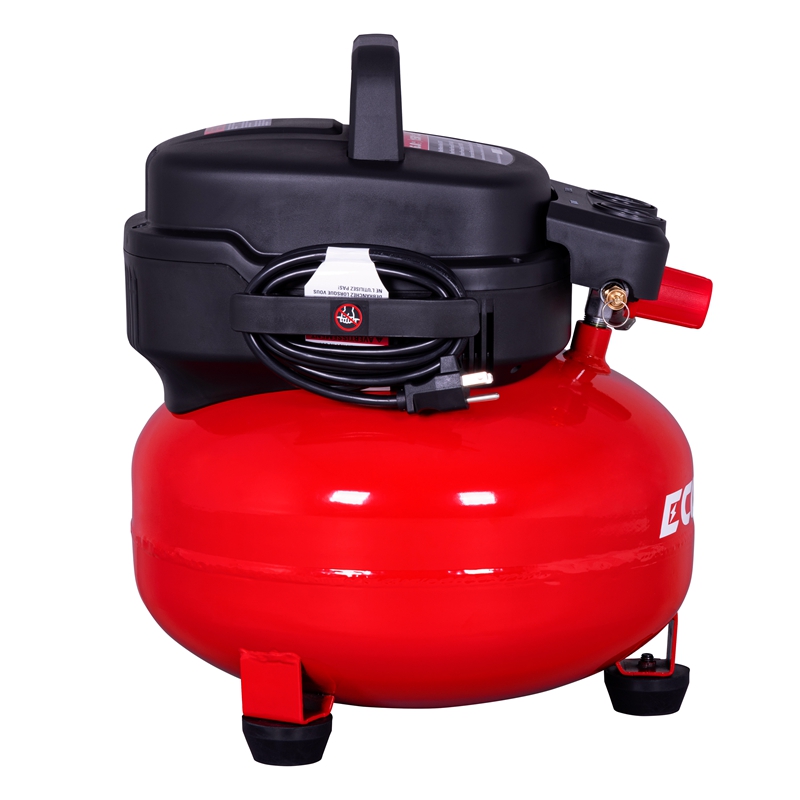

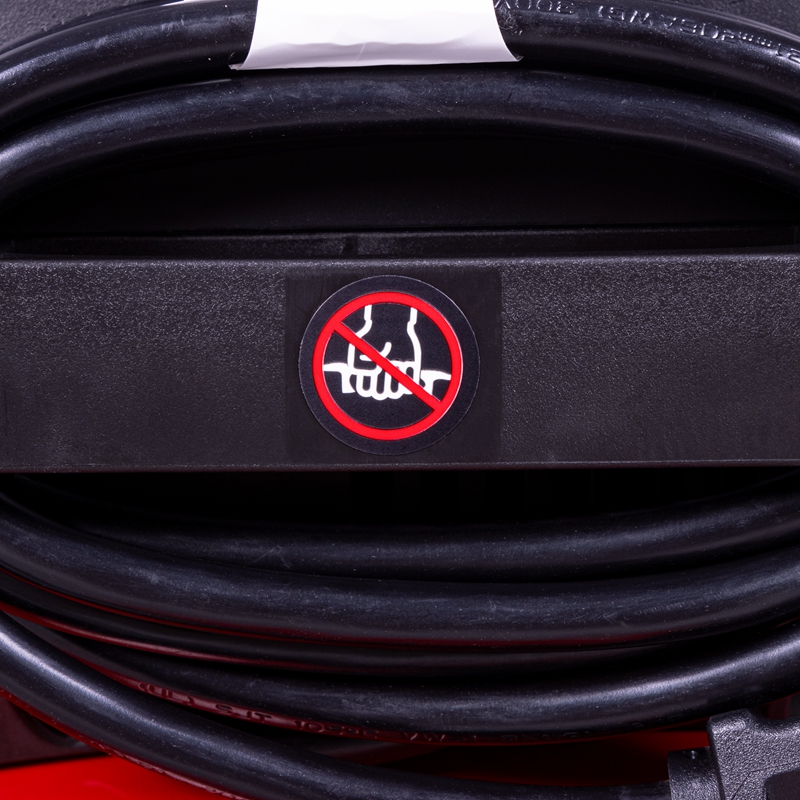

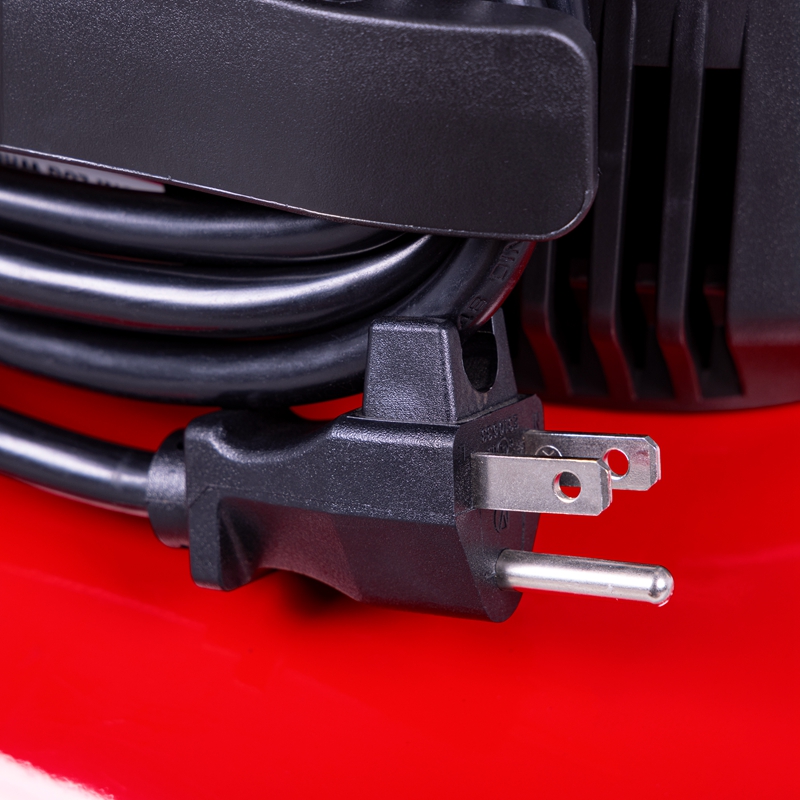

(11)Winding Bracket: For Convenient Power Cord Storage

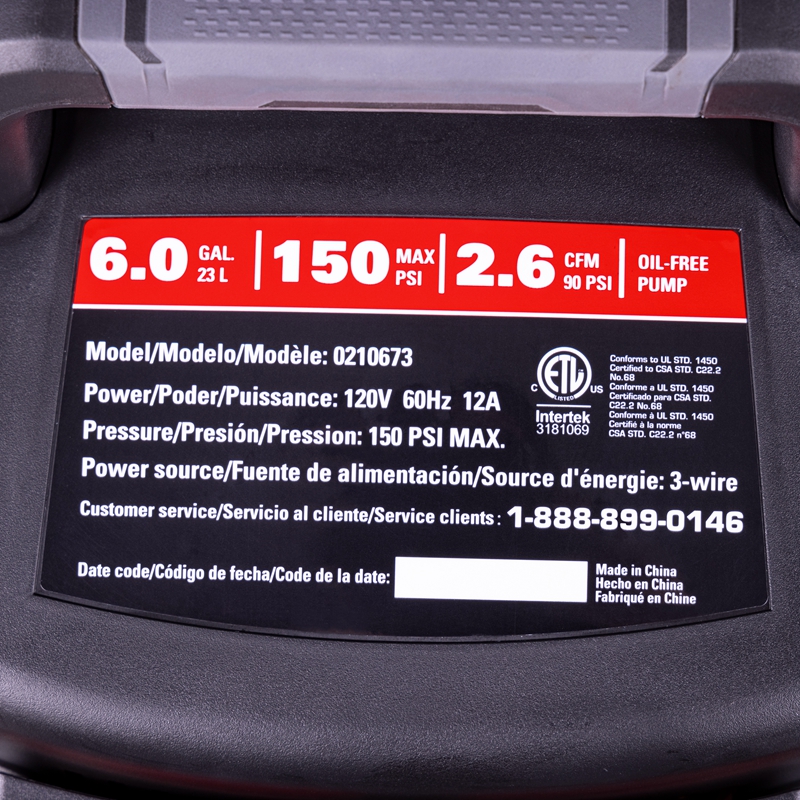

Specifications
Specs
Tank Size(Gallon) 6 Gal
Tank shape Pancake
ASME tank (Y/N) N
Running HP 1.0HP
Working pressure 120-150PSI
CFM@40psi 3.6
CFM@90psi 2.6
Motor type Universal
Oil free/Oil lube Oil-free
Quick coupler(0/1/2) 2
Gauges size / case 1.5"x2
Cord length(ft.) 6'
Rubber Wheels N/A
Handle type Fixed
Air filter N/A
Pressure switch YES
Drain valve 1/4" ball valve
Life cycle(Hrs) 250h
Duty cycle % 50% duty cycle
Noise level dB ≤82 dB(A)
Accessories
Accessories included N
Packaging
Packaging Color Box
Packing size(LxWxH)cm 43.00 x 40.50 x 49.50 cm
Packing size(LxWxH)inch 16.93 x 15.95 x 19.49 inch
Load Qty/40GP(pcs) 705
Load Qty/40HQ(pcs) 830
Net weight (kg) 12.50kg
Net weight (lbs) 27.56 lbs
Gross weight (kg) 14.4kg
Gross weight (lbs) 31.75 lbs
